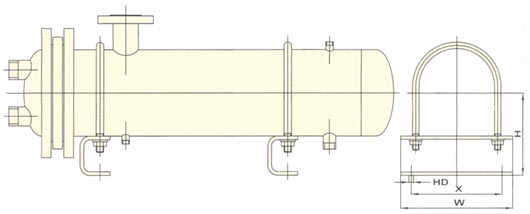

4 Inch Diameter 6 Inch Diameter 8 Inch Diameter 10 Inch Diameter 12 Inch Diameter 14 Inch Diameter 16 Inch Diameter 18 Inch Diameter 20 Inch Diameter 22 Inch Diameter 24 Inch Diameter 26 Inch Diameter 30 Inch Diameter| TYPICAL SADDLE DIMENSIONS | ||||
| Unit Size | Dimensions are in Inches | |||
|---|---|---|---|---|
| H | W | X | HD | |
| 4 | 5 1/4 | 6 15/16 | 5 1/2 | 1/2 |
| 6 | 6 5/16 | 9 1/4 | 7 1/2 | 5/8 |
| 8 | 7 5/16 | 11 1/4 | 9 | 5/8 |
| 10 | 8 3/8 | 13 5/8 | 10 | 3/4 |
| 12 | 9 3/8 | 15 5/8 | 11 | 3/4 |
| 14 | 18 | 17 | 12 | 3/4 |
| 16 | 12 | 19 | 13 | 3/4 |
| 18 | 13 | 21 | 14 | 3/4 |
| 20 | 14 | 23 | 14 | 3/4 |
| 22 | 17 | 25 | 18 | 7/8 |
| 24 | 18 | 27 | 19 | 7/8 |
| 26 | 19 | 30 | 20 | 7/8 |
| 30 | 21 | 33 | 22 | 7/8 |
| NOTE: Adjustable saddle shown in preferred locations. | ||||
