4 Inch Diameter 6 Inch Diameter 8 Inch Diameter 10 Inch Diameter 12 Inch Diameter 14 Inch Diameter 16 Inch Diameter 18 Inch Diameter 20 Inch Diameter 22 Inch Diameter 24 Inch Diameter 26 Inch Diameter 30 Inch Diameter30" Diameter Shell and Tube Heat exchanger Liquid to Liquid Models

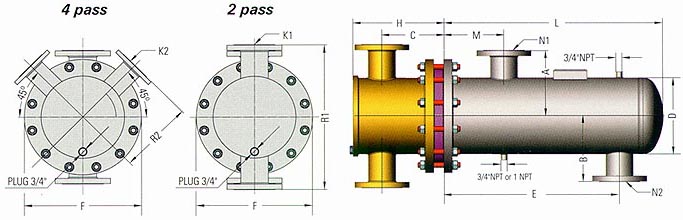

| Model Number | Cast Iron Heads [inches] | Dimensions [inches] | Htg. Surf. [sq.ft] |
||||||||||||||
| 2 Pass | 4 Pass | 2 Pass | 4 Pass | 2 and 4 Pass | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1 | K1 | R2 | K2 | C | H | D | F | M | E | B | A | L | N1 | N2 | |||
| WA-3021 | WA-3041 | 42 | 14" Flange | 20 3/4 | 10" Flange | 19 5/8 | 28 7/8 | 30 | 38 3/4 | 16 | 23 | 22 | 22 | 38 1/2 | 16" Flange | 16" Flange | 377.6 |
| WA-3022 | WA-3042 | 42 | 14" Flange | 20 3/4 | 10" Flange | 19 5/8 | 28 7/8 | 30 | 38 3/4 | 16 | 35 | 22 | 22 | 50 1/2 | 16" Flange | 16" Flange | 520.5 |
| WA-3023 | WA-3043 | 42 | 14" Flange | 20 3/4 | 10" Flange | 19 5/8 | 28 7/8 | 30 | 38 3/4 | 16 | 47 | 22 | 22 | 62 1/2 | 16" Flange | 16" Flange | 663.4 |
| WA-3024 | WA-3044 | 42 | 14" Flange | 20 3/4 | 10" Flange | 19 5/8 | 28 7/8 | 30 | 38 3/4 | 16 | 59 | 22 | 22 | 74 1/2 | 16" Flange | 16" Flange | 806.3 |
| WA-3025 | WA-3045 | 42 | 14" Flange | 20 3/4 | 10" Flange | 19 5/8 | 28 7/8 | 30 | 38 3/4 | 16 | 71 | 22 | 22 | 86 1/2 | 16" Flange | 16" Flange | 949.2 |
| WA-3026 | WA-3046 | 42 | 14" Flange | 20 3/4 | 10" Flange | 19 5/8 | 28 7/8 | 30 | 38 3/4 | 16 | 83 | 22 | 22 | 98 1/2 | 16" Flange | 16" Flange | 1092.0 |
| WA-3027 | WA-3047 | 42 | 14" Flange | 20 3/4 | 10" Flange | 19 5/8 | 28 7/8 | 30 | 38 3/4 | 17 | 95 | 22 | 22 | 110 1/2 | 18" Flange | 18" Flange | 1235.0 |
| WA-3028 | WA-3048 | 42 | 14" Flange | 20 3/4 | 10" Flange | 19 5/8 | 28 7/8 | 30 | 38 3/4 | 17 | 107 | 22 | 22 | 122 1/2 | 18" Flange | 18" Flange | 1378.0 |
